Basic Boat Info
Boat Name: GRATEFUL
Make: MJM
Model: 43z
Year: 2022
Condition: Used
Category: Power
Construction: Composite
Boat Hull ID: EOU43140F222
Has Hull ID: Yes
Dimensions
Length: 45 ft / 13.72 m
Length Overall: 46'1 ft / 14.05 m
Waterline Length: 43 ft / 13.11 m
Beam: 12 ft / 3.66 m
Max Draft: 3'4 ft / 1.01 m
Dry Weight: 18,774 lb
Engines / Speed
Engines: 2
Engine #1 Specs:
- Make: Volvo Penta
- Model: D6 IPS 650
- Drive Type: Pod
- Fuel: Diesel
- Engine Power: 480hp
- Type: Inboard
- Year: 2022
- Engine Hours: 235
Engine #2 Specs:
- Make: Volvo Penta
- Model: D6 IPS 650
- Fuel: Diesel
- Engine Power: 480hp
- Type: Inboard
- Year: 2022
- Engine Hours: 235
Total Engine Power: 960hp
Tanks
Fuel Tanks: 2
Fuel Tank Capacity: 175 gal
Water Tanks: 1
Water Tank Capacity: 100 gal
Other
Drive Type: Pod
Boat Class: Express Cruiser
Standard Specifications
HULL
DECK
PILOTING & NAVIGATION
PROPULSION
ELECTRICAL
ENTERTAINMENT
PLUMBING
GALLEY
MAIN CABIN
DUAL-ENTRY HEAD
FORWARD CABIN
SEPARATE SHOWER
COMMISSIONING GEAR
-
HULL
- Modified deep-V, offshore hull design with sharp entry, 3.5:1 Length to Beam Ratio, dual lifting strakes, chine flats and 19-degree transom deadrise.
- Hull (Flag Blue), cove (Cordovan Gold) and chine stripe in Awlcraft 2000 with 3 coats of clear for abrasion repair
- ISO (CE Mark) Certified Category A Ocean
- "Quiet Chine" modification to dampen wave slap
- Strong, light epoxy wet prepreg composite with E-glass and 1" CoreCell closed-cell foam core
- Solid keel, stem, and transom corners backed by a structural grid using unidirectional E-glass/epoxy GRP
- Reinforcing of thru-hull and hardware attachments areas with solid glass or Penske-Board.
- Side entry doors on to cockpit sole (2)
- Transom door to swim platform.
- Transferable 10-year osmotic blister warranty.
- Bilges painted with smooth, gloss-white finish.
- PVC guardrail an SS quarter-guard rub strips.
- Hull ports (4) in forward cabin and main saloon
DECK
- High-tech composite under vacuum using oven post- cured epoxy impregnated, stitched biaxial E-glass with a 1" Alcan Airex C70 closed-cell PVC foam.
- Cook "Armor Flex" off-white gelcoat deck w/sand- textured non-skid (Buff)
- Molded swim platform with recessed dinghy cleats.
- Custom Armstrong SS retractable swim ladder
- Backing plates for cleats and stanchions are epoxy G- 10 pressure- laminated composite.
- Hull and deck fused together as monocoque structure with methacrylate adhesive with shear strength of 3,000lbs. per square inch and mechanical fasteners on 8-10" centers.
- 316L SS handrails (17) on pilothouse corner posts, hardtop, cabin top, under hardtop, on aft seat backs, galley over head, outboard on console and either side of companionway entrance.
- 29" cockpit guard rail and 24" bow rail of 1.25" 316L stainless with spotlight and burgee staff for 16" hoist.
- 3'x5' National flag with teak staff and retainer pin.
- Varnished teak burgee flag staff on bow pulpit
- Muir anchor windlass with deck and cockpit controls
- Fresh water anchor and rode washer control at helm.
- Polished stainless steel bow guard
- Molded Downeast Style windshield frame & hardtop
- Entry panel to cockpit w/ dual window/screen
- Deck drains divert dirt/soot/dew/rain in to gray water system and out transom...not on to topsides.
- Custom SS multi-directional bow chocks(2).
- Engine room access hatches (3) with scuppers, overboard drains, gaskets and lockdowns. Main hatch has electric operated lift arm and manual backup.
- Utility room access hatch in pilothouse with custom Armstrong telescoping ladder.
- Varnished teak storage drawers w/locks
- Large pilothouse settee lockers P&S w/piston- activated lockable lids, vinyl flooring and mesh organizer bags for power cords, hoses, bikes, hard luggage, dinghy and/or golf club storage.
- Cockpit seat lockers(P&S) for dock lines, fenders, cleaning supplies and lubricant with Ultra Leather back & bottom cushions.
- 36x16 single-leaf gloss-varnished teak table with fiddles w/pilothouse & cockpit sockets. Opens to 32".

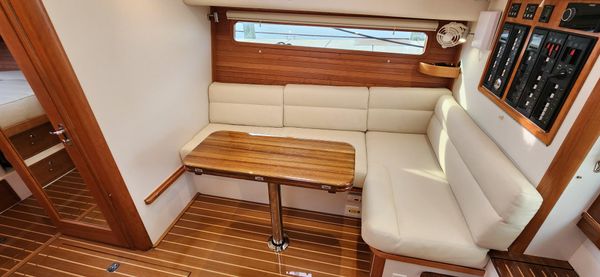

- Pilothouse settees w/Ultra Leather covered memory- foam bottom cushions...convert to 6.5-foot berths.
- Drink holders(6) at piloting seats and transom seat
- 8 Lewmar overhead deck hatches in forward cabin (2), head, shower, main saloon (2) and over piloting chairs(2)...all with Ocean dual action shade-screens.
- 6 Cabin trunk opening ports w/ screens in forward cabin, head, shower, galley and saloon.
- Ocean Air combination screen/ shades on hatches and pull shades on portlights.
- Gloss-varnished, paneled & louvered, lockable (from inside & out) sliding teak companionway door with 4- section hinged cover with chartbook retainer fiddle.
- Movable SS Cockpit Chairs(2) with Ultra Leather bolstered cushions
PILOTING & NAVIGATION

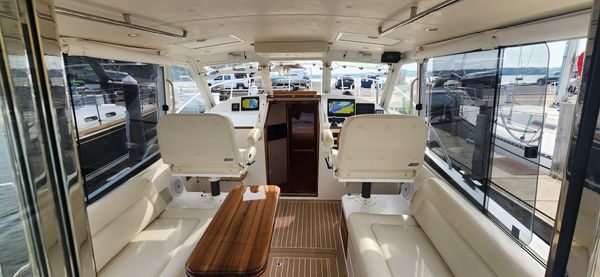

- Matched Stidd 500 30" Wide Admiral low-back, recliner piloting chairs in Ultra Leather which lower and swivel to create a social seating for 8 persons.
- 24" Edson destroyer wheel with varnished teak rim
- Fully-opening windshields (3), wipers & washers giving for airflow in warm climates and visibility in fog or at night
- Bi-level piloting console (P&S) with gray anti-glare
- Kahlenberg D-O air horn w/auto fog/anchor signal
- Ritchie SS-2000 4.5 Super sport compass.
PROPULSION
- Twin Volvo-Penta D6 joystick docking system with DPS Station Keeping..
- Volvo-Penta Line Cutters between Duo Props
- Engine spares kit and service manual.
- UL approved fuel shut off and fuel/air separators.
- Racor fuel / water separators with spare cartridges
- Two 175 gallon, aluminum fuel tanks with fuel level sensors and interconnect line with shut-off valves.
- Parker Class 1 steel-braid-reinforced, fuel hoses.
- SS engine air intakes (4)
- Dedicated sump below engine and transmission.
- Seafire automatic fire suppressant system
- Custom Soundown insulated engine room.
ELECTRICAL
- Custom backlit electrical panel with 25-12v DC breakers and 12-VAC breakers, stainless breaker guards and digital DC and AC monitors
- 110VAC system w/Victron Energy Shorepower system w/ 2-50' white 30-Amp Marinco cords Stainless GFCI duplex outlets (6)
- Volvo-Penta standard 125amp alternators.
- Blue Seas battery combiners
- Galvanic isolator
- LED cabin-reading lights(4) Overhead in galley(4) head (2) shower( 2) saloon (4) forepeak (4) piloting console(2) and pilothouse (4) on 4 dimmers witches.
- Courtesy lights(3) in cockpit and head.
- Engine compartment lights.
- 700-ampere hour absorbed glass-mat battery capacity with 2-Group D245AH house and 3-Group 31 105 AH engine and generator-start batteries.
- LED navigation and anchoring lights.
- Bonded electrical system and underwater fittings
- Serviceable wiring, bundled & numbered with Deutsch O-ring waterproof connectors.
- Dirt Devil central vacuum system
ENTERTAINMENT
- Fusion stereo system with AM/FM /SIRIUS/ VHF/WX/USB; 5 channel 1600 watt amplifier; 6-7?" speakers; 2-3" speakers and 8" subwoofer.
PLUMBING
- Pressure hot/cold water with Johnson Aqua Jet Duo variable-speed water pressure pump
- 13-gallon stainless steel hot water heater.
- 100-gallon polyethylene fresh water tank
- Dock side water inlet w/check-valve and regulator.
- General Ecology SeagullI V purification system
- Scanvik hot/cold shower on swim platform
- High-pressure fresh water(wash down in port cockpit locker w/50? hose & nozzle.
- Jabsco Rule1100 automatic bilge pumps(3)
- Vacuflush head system with 30 gallon holding tank w/ pump out and macerator discharge.
- Back-up Bosworth manual bilge pump.
- Centralized gray water discharge system
- Gray water sump w/inspection port for shower, head, icebox and AC condensate.
- Marelon non-corrosive thru-hulls/seacocks with strainers and double-clamped hose.
GALLEY
- Corian counter-top with framed and paneled cherry cabinetry with push-button locks & drawer handles and upper storage cabinets with offset inner shelf.
- Recessed polished SS sink with removable bamboo cutting board cover and Scanvik pullout faucet.
- Flatware & utensil drawers(3)w/Rubbermaid organizer.
- Stainless 5.5 cu.ft. 2-drawer reefer/reefer.
- Freeze compartment w/4 ice trays
- Dry goods cabinet w/sliding doors and intermediate shelf running length of galley w/LED lighting under.
- Under counter storage locker for large pots/pans and cleaning supplies.
- Flip lid access panel to large Rubbermaid trash bin.
- Overhead safety handrail and towel drying bar.
- Sharp Double Grill 5-Way Convection Oven.
- Double stainless hooks for hot pads and dishtowels.
- Extended shelf with grab-rail fiddle above galley suitable for chart storage, cutting boards, etc.
MAIN CABIN
- Large hull ports (2), skylight hatches (2) and cabin portlights (2) to maximize ventilation, space and light.
- The companionway is designed for safety to function like a normal stairway with stainless grab rails and only 2 steps w/shoe locker & tool storage under.
- Headroom of 6' 4" on centerline.
- Clear Awlgrip gloss-finished teak & holly cabin sole with storage compartment for large plastic bins.
- Off-white Nevamar HPL paneling with cherry trim with foam backed vinyl headliner & satin-varnished cherry ceiling battens.
- Access door to dual entry head with integral shower.
DUAL-ENTRY HEAD
- The port side combination head/shower is accessible from either forward or main cabin.
- Corian counter with white Corian oval sink having mixer valve spigot and pull-out flexible hose with soft-spray to use as second shower.
- Paneled cherry storage locker outboard with sliding doors and towel storage shelf above.
- Full-length mirrors inside door.
- Locker under sink w/stainless TP holder
- Towel rings an hooks.
- Vent hatch and portlight.
- Floor drain to gray water overboard system
FORWARD CABIN
- Fixed 78" x 60" island berth having memory foam mattress covered in durable water resistant quilted Ultra- Leather.
- Storage drawers(4) and below-berth storage bin.
- Storage shelves over berth (P&S) handholds when rising from berth.
- Framed cherry wood forward bulkhead with recessed book cases (2) and double access doors to large forepeak anchor locker.
- Hanging locker to port with storage shelf over.
- Private access to head and ensuite shower.
- Stainless double-hooks (3) for clothing
- Dressing mirror on forward face of entry door.
SEPARATE SHOWER
- Shower access to starboard from forward cabin with seat as well as towel & toiletry storage bin outboard.
- Wall mounted Scanvik shower hose w/turnoff.
- Shaving mirror.
- Towel rings and bathing suit hooks.
- Opening vent hatch & portlight w/screens & shades
- Floor drain to gray water overboard system.
COMMISSIONING GEAR
- 16 Type 3 Runabout Vests in 4 carry bags.
- West Medical Kit
- 12 Gauge Flare Kit
- Hand Held Bilge Pump
- LED Flashlight
- California Squeegee for Strataglass
- 8' Telescoping Boat Hook
- Deck Bush & Chamois w/Handle
- Bailer Sponge & Absorber Chamois
- Square Rubbermaid Bucket
- West Marine Boatyard Toolkit
- 4-10x27 Black Fenders w/ Black covers.
- 4 Extra Fender Whips for Horizontal Hanging
- Hand Air Pump for Fenders
- 5 Black 35" Braided Docklines
- ISO Required Owner's Manual
- Owner's Manual in Binder.
- USCG Rules of the Road Booklet
- Professionally Compensated Compasses w/Deviation Cards.
-
